The RGT SL10 is a sequential shift light system which includes a LED digital display tachometer. The SL10 is easily mounted on your dashboard to give you a visual indication of the optimum point at which to change gear whilst racing.
Unlike conventional shift lights, which require you to rev your engine in order to program the point at which you want the light to come on, the SL10 can be set up without starting the engine. The built in display enables you to program the shift point more accurately than just using your rev counter.
At the touch of a button, can easily configure and memorize shift point, begin of led lighting rev point, number of cylinders, digital display brightness, LED brightness and LED scrolling mode.
SL10 features shift flash, this flashes all the LED’s at shift point to grab your attention even further.

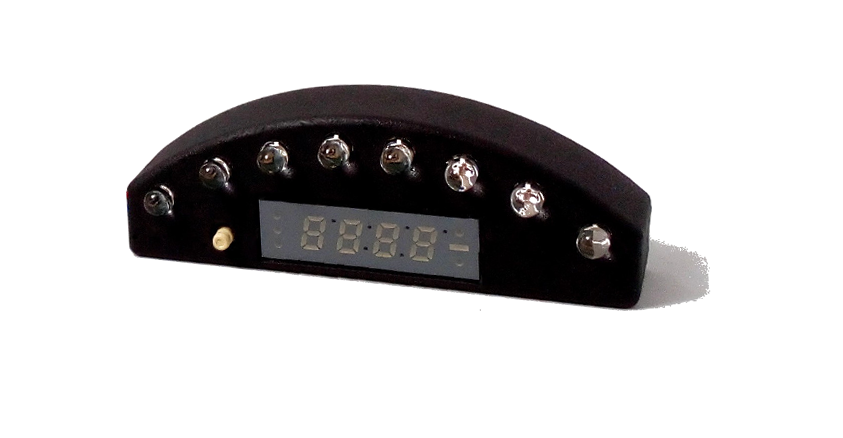

Sequential Shift light SL10
Specifications
Power requirement 12V (7V – 28V tolerance)
Power consumption max 0.06A at 12V dc (all lights lit)
Accuracy within 10 RPM
Terminations +, - and coil
Number of cylinders 1, 2, 3, 4, 5, 6, 8, 10 & 12
Operating temperature 0°C – 50°C (32°F - 122°F)
RPM range 100 – 15,000
Size (W x H x D) 84mm x 29mm x 18mm
Weight 40 grams (excluding cable)
Memory lifetime Approximately 40 years
Shift point is user programmable.Begin of led lighting rev point is user programmable.
Digital display brightness is user programmable
LED brightness is user programmable
2 LED scrolling modes.
Available Input ratios
1CY 0.5 pulses per revolution
2CY 1 pulse per revolution
3CY 1.5 pulses per revolution
4CY 2 pulses per revolution
5CY 2.5 pulses per revolution
6CY 3 pulses per revolution
8CY 4 pulses per revolution
10CY 5 pulses per revolution
12CY 6 pulses per revolution
LED Specifications.
Red shift led 21 000 mcd
Red leds 16 000 mcd
Amber leds 12 000 mcd
Blue led 12 000 mcd
